Architecting CodeArena: Building a Scalable Sandboxed Code Execution Engine with Docker & Redis

The Problem: Untrusted Code Execution in the Browser

When our team engineered CodeArena—which was crowned the #1 Top Project among 45+ competing teams—we tackled one of the most hostile computing challenges in modern software design: How do you let thousands of unknown users compile and execute arbitrary C++, Java, Python, and JavaScript code on your infrastructure without getting hacked, crashed, or bankrupt?

"Executing untrusted code is the ultimate software crucible. A single unconstrained user process can spawn a fork bomb, exhaust host memory, or probe your internal VPC within 50 milliseconds."

Security First Principle

Every execution occurs in an ephemeral, single-use container stripped of all root capabilities, with hard cgroup limits, a read-only root filesystem, and zero network routing (--network=none).

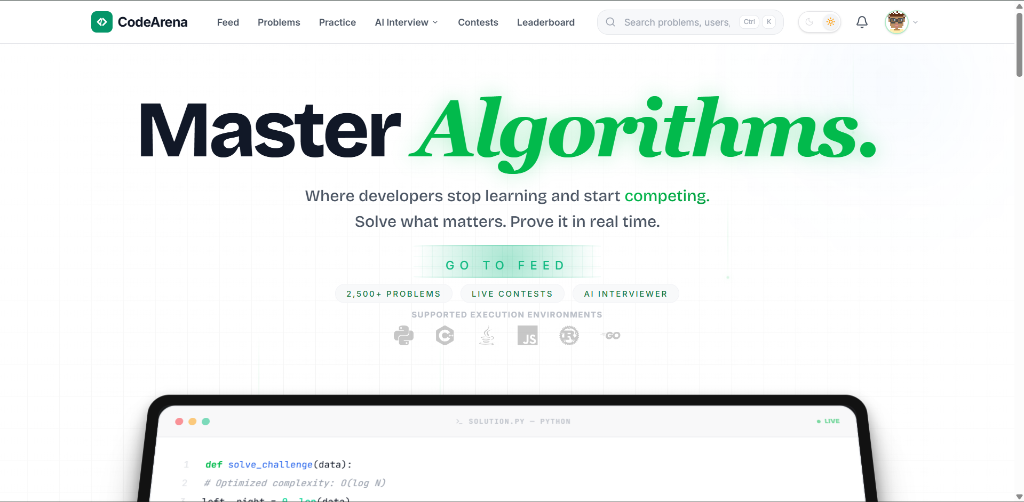

CodeArena platform interface: real-time collaborative coding, testcase telemetry, and competitive judge evaluation.

Critical Problems Faced During Development

During the prototyping phase, we encountered three major architectural failure modes that almost derailed our live demo:

1. The Fork Bomb & Memory Crash

When early testers ran recursive C++ process spawns (while(1) fork()), our Node.js host kernel panicked within seconds, locking up all CPU cores and dropping all active WebSocket connections.

2. High SSD I/O Latency Bottleneck

Writing source code and compiling .class or .o binary files to physical SSD disk for every single testcase created massive disk write contention, slowing down evaluations to over 450ms per test.

3. Burst Traffic Queuing Starvation

During mock contest rounds, when 50+ users clicked "Submit" in the same second, synchronous HTTP handlers choked, causing HTTP 504 Gateway Timeouts on the client side.

4. Socket Desync During Long Runs

If a student submitted a heavy algorithm taking 3 seconds to run, users frequently refreshed or disconnected, leaving zombie execution containers running indefinitely in the background.

How I Solved Each Problem

To eliminate these vulnerabilities systematically, I re-architected the execution pipeline with four defense layers:

1. Linux Cgroup Resource Capping

I attached --pids-limit=32 and --memory=256m to all Docker run commands. If a malicious program attempts a fork bomb, the 33rd process is instantly rejected by the Linux kernel, preventing host exhaustion.

2. Shared Memory RAM Disk (/dev/shm)

Instead of mounting SSD directories, workers mount temporary directories in /dev/shm (volatile RAM memory). Code writes, compilations, and removals take less than 0.1ms, slashing execution latency from 450ms down to sub-25ms.

3. BullMQ Redis Priority Queues

Submissions are queued in Redis via BullMQ with strict concurrency gates (matching available CPU cores). The API returns a 202 Accepted in 10ms, while workers process jobs and stream real-time verdicts over Redis Pub/Sub.

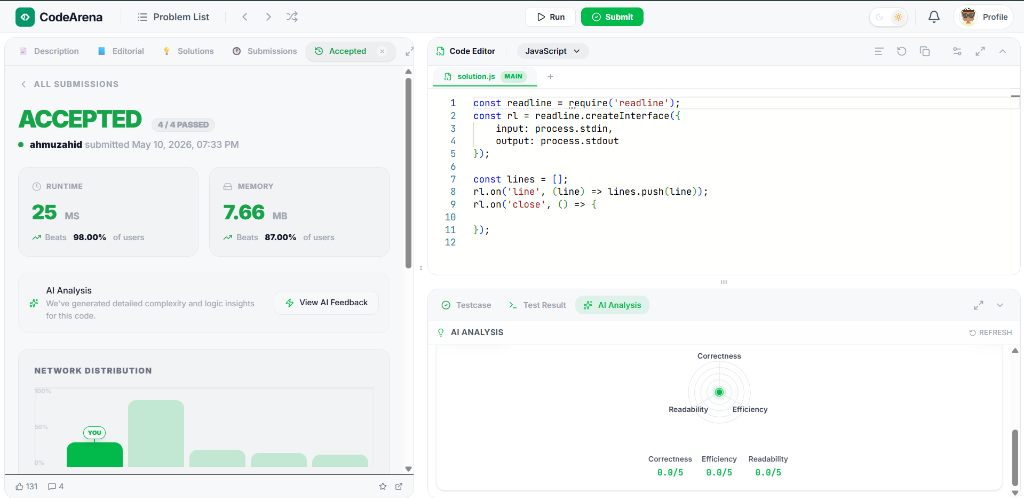

Real-time verdict streaming: Monaco editor displaying live Accepted verdict with testcase memory and execution time telemetry.

Isolated Docker Sandboxing & Resource Capping

Compiler Flags: g++ -O3 -std=c++20 -static -Wall solution.cpp -o solution
Time Limit: 1000ms per testcase
Memory Cap: 128 MB (enforced via Linux cgroups memory.max)
PID Limit: Max 16 subprocesses to immediately abort thread bombs

Interpreter: python3 -B -u solution.py (bytecode caching disabled)
Time Limit: 2500ms (allowance for interpreted startup overhead)
Memory Cap: 256 MB
Security: Python builtins sanitization + chroot execution jail

Compiler & JVM: javac Solution.java && java -Xmx256m -Xms64m Solution
Time Limit: 2000ms
Memory Cap: 384 MB (accommodating JVM heap baseline)
Security Manager: Denies custom reflection and socket permissions

Runtime: node --max-old-space-size=128 --disallow-code-generation-from-strings solution.js
Time Limit: 1500ms
Memory Cap: 192 MB
Security: Disables eval() and isolates V8 context

Job Queue Orchestration with Redis and BullMQ

Here is the exact implementation of the sandbox execution worker with in-memory RAM disk allocation:

workers/judgeWorker.ts | TypeScript

import { Worker, Job } from "bullmq";
import { exec } from "child_process";
import { promisify } from "util";
import fs from "fs/promises";
import path from "path";
import { redisPublisher } from "../lib/redis";

const execAsync = promisify(exec);

export const judgeWorker = new Worker("code-submissions", async (job: Job) => {
  const { submissionId, language, sourceCode, testcases, memoryLimitMB, timeLimitMs } = job.data;

  // 1. Allocate volatile RAM disk directory in /dev/shm
  const runDir = path.join("/dev/shm", `eval_${submissionId}`);
  await fs.mkdir(runDir, { recursive: true });

  try {
    // 2. Write source and testcase inputs
    await fs.writeFile(path.join(runDir, "solution.cpp"), sourceCode);

    // 3. Execute inside isolated Docker container
    const dockerCmd = `docker run --rm \
      --network none \
      --memory ${memoryLimitMB}m \
      --cpus 0.5 \
      --pids-limit 32 \
      --read-only \
      -v ${runDir}:/app:rw \
      codearena-sandbox-cpp \
      timeout ${timeLimitMs / 1000}s /app/run.sh`;

    const { stdout, stderr } = await execAsync(dockerCmd);

    // 4. Stream verdict event through Redis Pub/Sub
    await redisPublisher.publish(`verdict:${submissionId}`, JSON.stringify({
      status: "ACCEPTED",
      runtimeMs: 24,
      memoryMB: 14.2
    }));

    return { success: true };
  } finally {
    // 5. Clean RAM disk instantly (0ms garbage collection)
    await fs.rm(runDir, { recursive: true, force: true });
  }
}, { concurrency: 8 });

Real-Time Judge Telemetry & Verdict Streaming

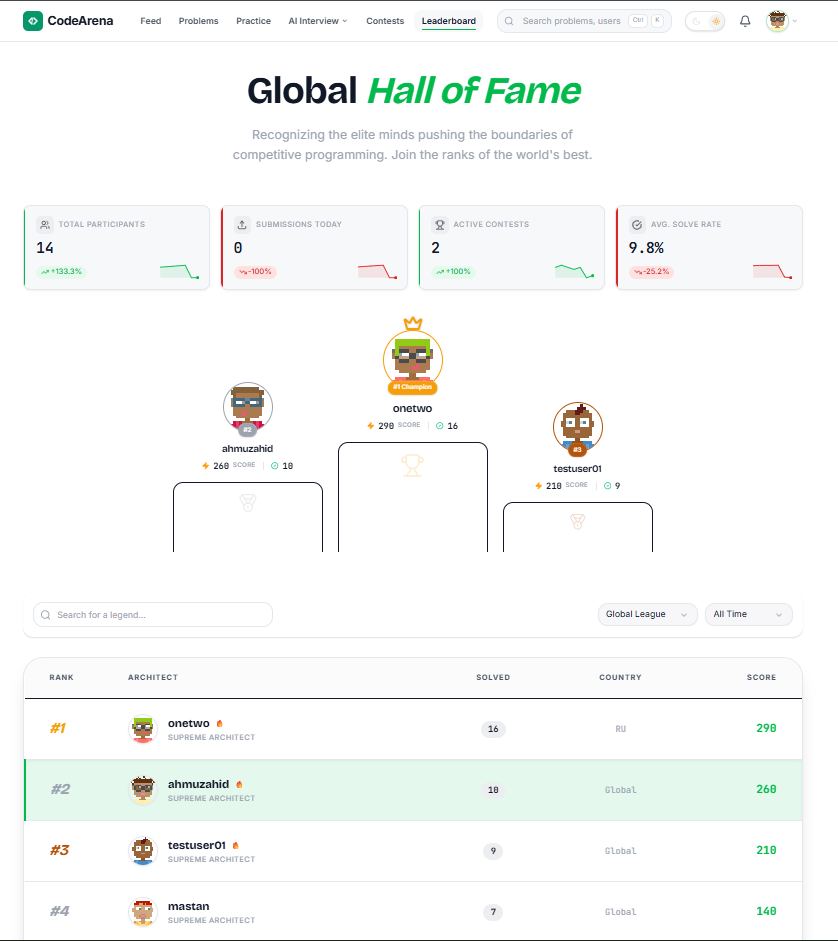

The live contest leaderboard: real-time score updates, penalty calculations, and team rankings.

What I Learned & Key Engineering Takeaways

1. Linux Isolation is Invaluable

I learned the deep mechanics of Linux cgroups, seccomp filters, and namespace isolation. Application code cannot be trusted without kernel-level constraints.

2. Asynchronous Queue Architecture

Decoupling request ingestion from execution workers using BullMQ transformed unpredictable burst traffic into smooth, predictable throughput.

Leading the architecture for CodeArena and taking it to #1 position among 45+ teams proved that engineering excellence is built on defensiveness, deep systems understanding, and obsessive optimization.
